Wire Marking Services


Data Cable is a world class manufacturer of custom cable assemblies, wire harnessing, electro-mechanical assemblies and other interconnect solutions for a diverse group of industries - defence, medical, robotics, UAVs, transportation, industrial equipment, satellite & communications, nuclear & power, agriculture, forestry, mining & more.

Wire and cable marking is a service Data Cable makes available to its customers who partner with them for wire processing solutions. Wire marking is ideal for heavy equipment, and capital equipment with many wires in a harness.

A cable in a wire processing machine

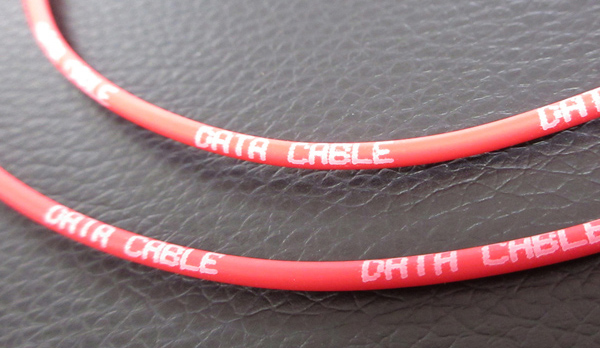

Wire and cable marking allows for the addition of variable information (like use or signal) to the surface of an insulated wire during wire processing. It solves the colour limitation issue, enabling you the ability to fully identify all individual cable wires, which is key in helping with assembly, trackability and troubleshooting.

Wire marking, when done at the time of wire processing, is a faster and more economical solution than manual wire labeling. It also requires almost no additional labour cost, or time, except for set up and programming. Applying a single label by hand can take up to one minute to apply. If you require continuous marking across the wire’s length or if you need to put one on each end, and if the finished product is only a single lead, labelling costs can soar, becoming a huge percentage of cost.

Data Cable’s high-quality industrial inkjet printers are installed on 2 of our wire processing machines (cut and strip).

  • They print black or white ink with high precision through a nozzle smaller than a human hair on 20 awg to 8 awg wire and cables up to ½” or 13mm in diameter.
  • The marking can be applied at the “ends” or continuously along the run of the wire or cable.
  • Font size and orientations are adjustable, and neither the ink or the process itself affects the insulation properties.
  • The ink marking is permanent on most PVC type insulations, but will not work on Teflon insulations.

Watch the video below to see our wire marking serivce in action.



For higher wire processing volumes, wire marking services may be offered at no additional cost. Talk to us today about your wire processing and wire marking needs. We are confident that we can help you find the best solution.
